AESTHETIC ELEGANCE, SUPERIOR INSULATION

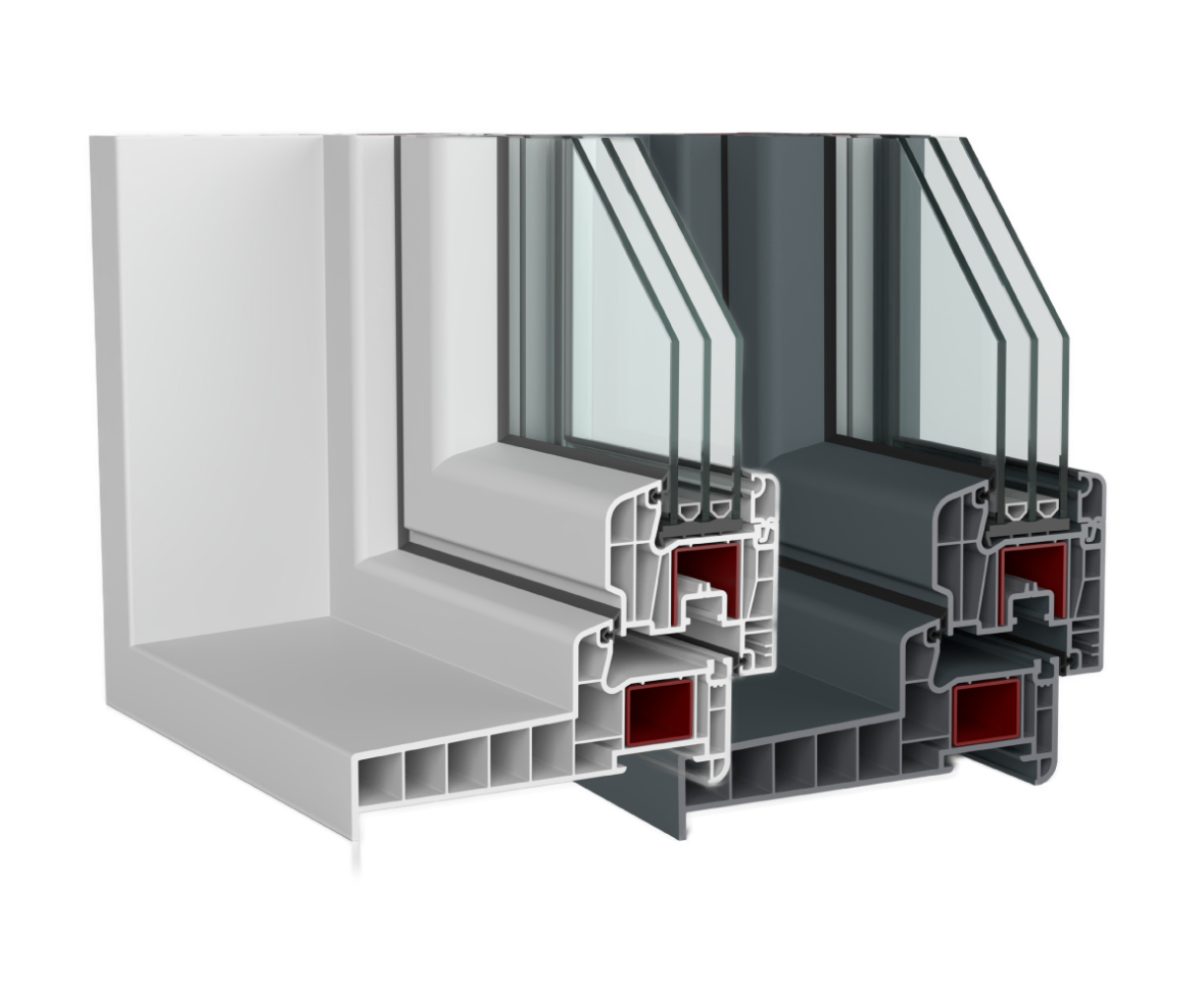

Frenchline

PVC DOORS AND WINDOWS SYSTEMS

Designed to meet the highest aesthetic and thermal demands. Available in 120, 140, and 160 mm frame widths — a versatile system with semi-hidden gaskets and a signature 45° glass bead design.

120–160mm

FRAME WIDTH

36mm

MAX GLAZING

2.7mm

WALL THICKNESS

BROCHURE TECHNICAL DRAWINGS

WHY FRENCHLINE?

Elegant Profile,
Uncompromising Detail

Frenchline redefines the aesthetics of PVC with semi-hidden gaskets, a 45° glass bead finish, and Enderpen's exclusive snap-in gasket system — delivering beauty and performance in equal measure.

Semi-Hidden Gasket System

Gaskets that do not overflow onto the glass surface, providing a clean aesthetic appearance while maintaining full weather protection.

45° Glass Bead Design

Aesthetic 45° angled glass bead delivers a refined, contemporary profile finish that sets Frenchline apart from standard systems.

Snap-In Gasket Beads

Enderpen's exclusive self-gasket glass beads can be easily installed and removed without tools, streamlining maintenance and glazing operations.

2.7 mm Wall Thickness

European standard 2.7 mm (±0.2 mm) wall thickness guarantees long-term structural rigidity and dimensional stability.

Wide Frame Range

Available in 120, 140, and 160 mm frame widths to suit every architectural requirement from standard windows to large-scale facade applications.

Versatile Glazing Options

Supports glass from 4 mm up to 36 mm, accommodating single, double, and triple glazing units for maximum thermal and acoustic performance.

SPECIFICATIONS

Technical Details

Frenchline's generous dimensions and precision engineering make it the premium choice for demanding architectural projects.

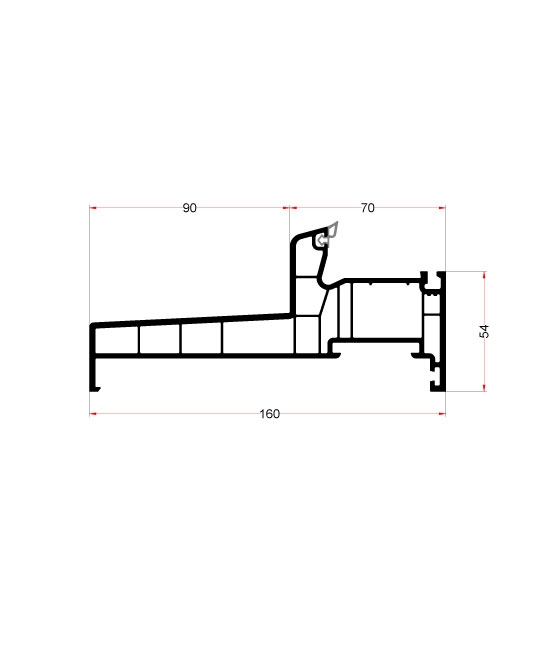

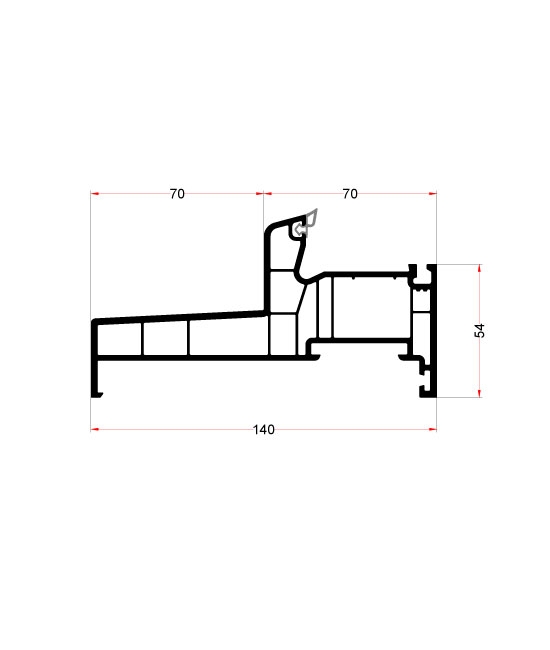

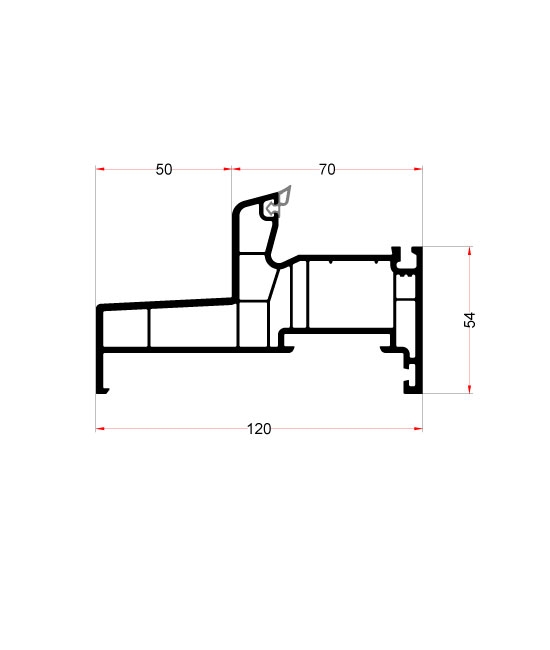

FRAME WIDTH 120 – 140 – 160 mm

GLAZING APPLICATION 4 – 10 – 24 – 32 – 36 mm

WALL THICKNESS 2.7 mm (±0.2 mm)

WATER DRAINAGE 3° inclined channels

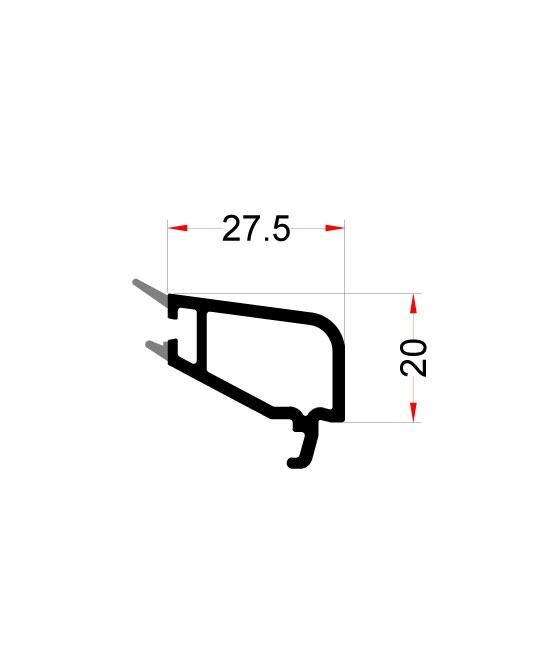

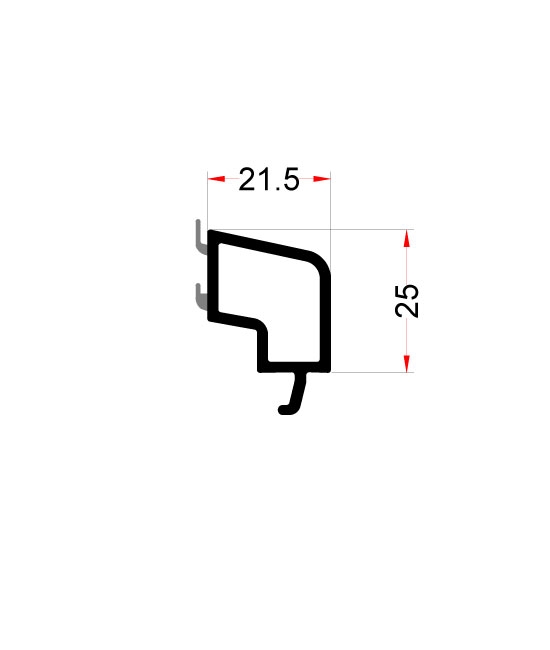

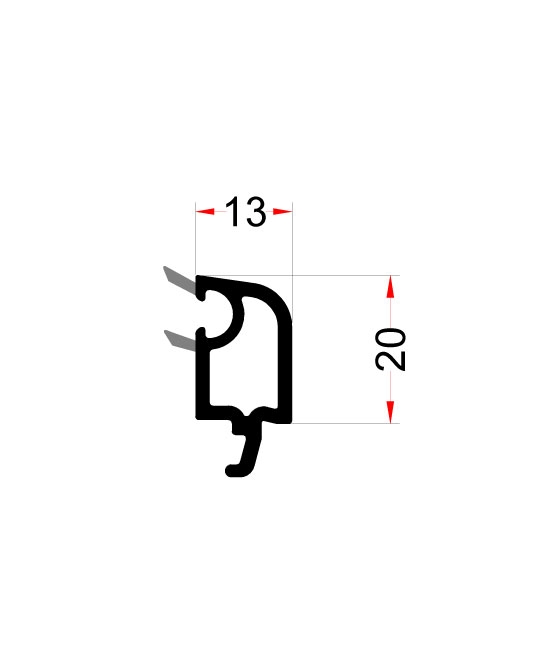

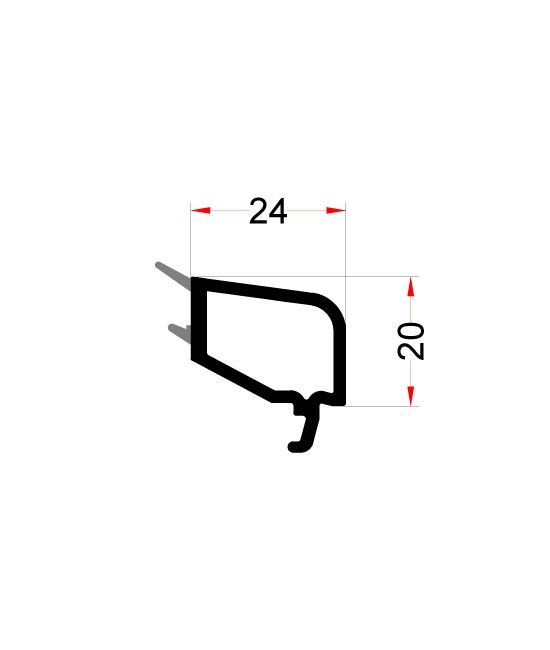

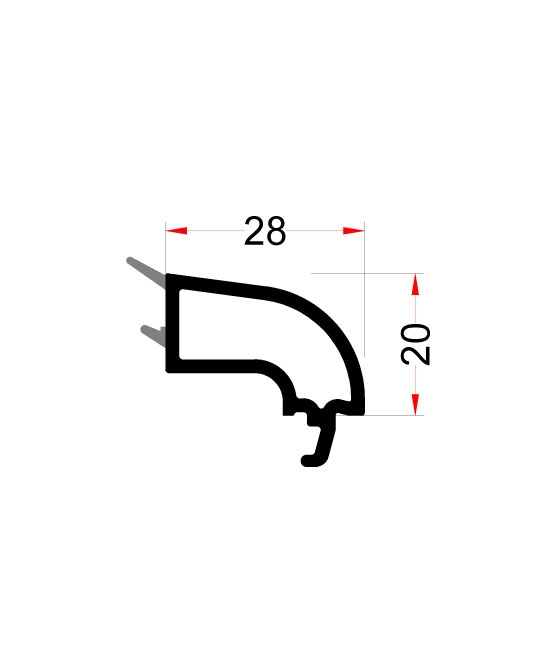

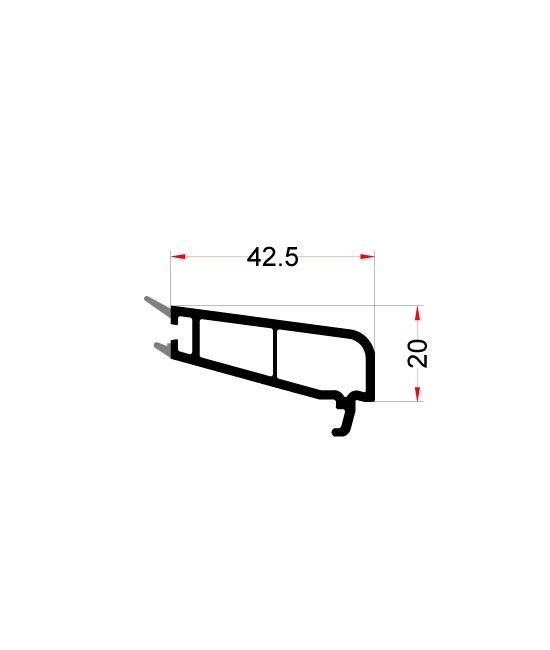

GLASS BEAD 45° aesthetic finish

GASKET SYSTEM Semi-hidden, snap-in self-gasket beads

INSULATION Innovative frame design — thermal & sound

KEY VALUES

45°

Glass Bead
Design Angle

36mm

Max. Glazing
Thickness

APPLICATION TYPES

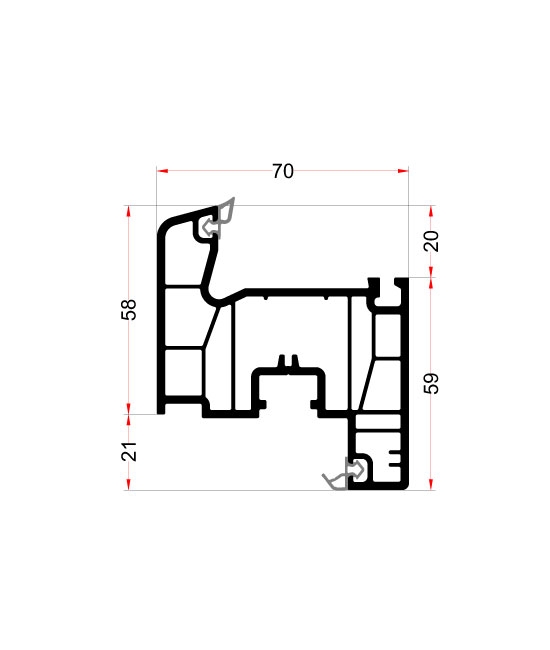

Frame – Window Sash Application

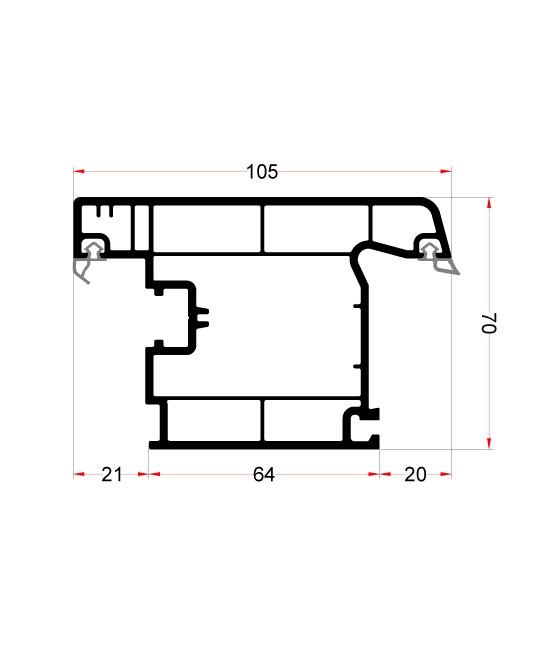

Frame – Outward Opening Door Sash Application

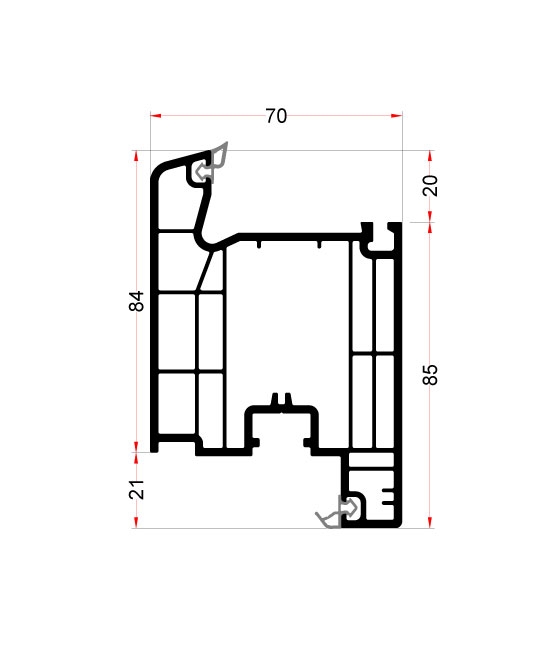

Frame – Door Sash Application

COLOR ALTERNATIVES

Fits Every Space

19 COLOR

Preview coming soon
for this color

Color Alternatives

Durable

Soundproof

Waterproof

CE Certified

Hover to preview · Click image to zoom

ENVIRONMENT & SUSTAINABILITY

Invest in the Future

Frenchline leaves a more livable world for future generations thanks to its green and eco-friendly components and certified sustainable production.

🌿

RoHS Compliant Components

Produced with eco-friendly profiles and accessories free of harmful substances. Leaves a clean environment for future generations.
⚡

Low Energy Consumption

Reduces heating and cooling costs through innovative frame design and special insulation gaskets. Helps shrink the carbon footprint of every building.
🏭

ISO 14001 Environmental Management

Environmental impact is minimized during the production process with a certified environmental management system.
