NEXT GENERATION SYSTEMS

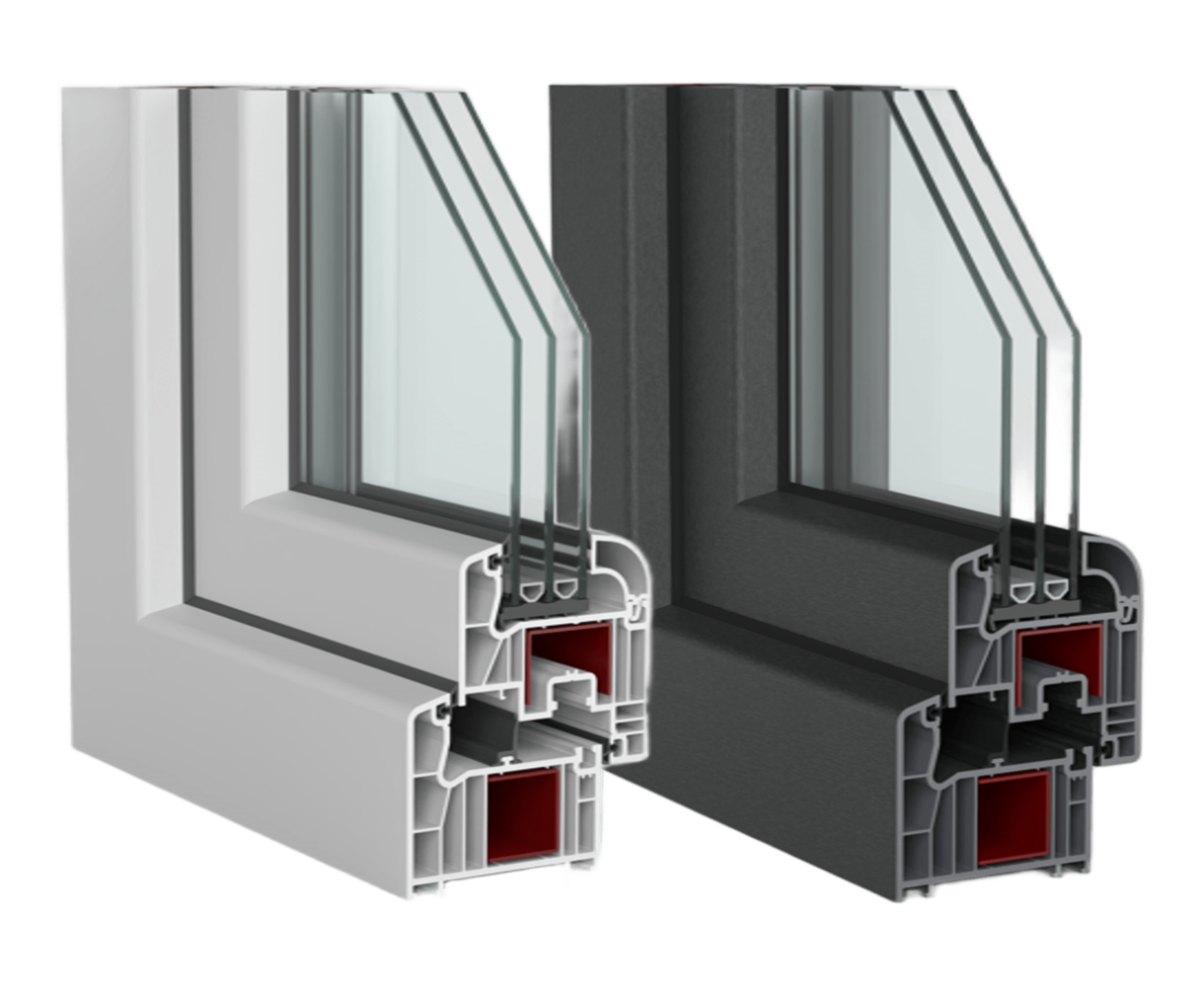

Highline
PVC DOORS AND WINDOWS SYSTEMS
A new generation profile technology that maximizes energy efficiency with green and eco-friendly components, leaving a livable world for future generations.
80mm
FRAME WIDTH
6×
CHAMBER SYSTEM
3×
GASKET SYSTEM
WHY HIGHLINE?
Superior Performance,
Lasting Comfort
Highline's 6-chamber structure and triple glazing support offer the highest industry standards in thermal, acoustic, and air insulation.
01
6-Chamber Profile System
Allows triple glazing up to 32 mm. Provides maximum performance in thermal and sound insulation.
02
3-Level Gasket System
The triple gasket layout completely blocks noise, cold, moisture, and wind, creating a comfortable environment.
03
Energy Efficiency
Takes energy saving to the highest level with Uf = 1.16 W/m²K and Uw = 0.86 W/m²K values.
04
2° Inclined Water Drainage
Quickly expels rainwater without accumulation inside the profile. Long-lasting, maintenance-free structure.
05
2.4 mm Wall Thickness
Wall thickness processed with ±0.2 mm precision ensures structural durability for many years.
06
Eco-Friendly Production
Certified sustainable production process with CE, RoHS, and TSE documents. Leaves a clean environment for the future.
SPECIFICATIONS
Technical Details
Highline's engineering excellence is evident in every measured value.
FRAME WIDTH
80 mm
GLAZING APPLICATION
Up to 44 mm triple glazing
WALL THICKNESS
2.4 mm (±0.2 mm)
WATER DRAINAGE
2° inclined channels
GASKET SYSTEM
3 levels — noise, cold, moisture
INSULATION
6 chambers — thermal & sound isolation
THERMAL VALUES
1.16
Uf (W/m²K)
Frame Thermal Conductivity
Frame Thermal Conductivity
0.86*
Uw (W/m²K)
Window Thermal Conductivity
Window Thermal Conductivity
APPLICATION TYPES
Frame – Window Sash Application
Frame – Outward Opening Door Sash Application
Frame – Door Sash Application
COLOR ALTERNATIVES
Fits Every Space
19 COLOR
Preview coming soon
for this color
for this color
Color Alternatives
Hover to preview · Click image to zoom
ENVIRONMENT & SUSTAINABILITY
Invest in the Future
Highline leaves a more livable world for future generations thanks to its green and eco-friendly components.
-
RoHS Compliant ComponentsProduced with eco-friendly profiles and accessories free of harmful substances. Leaves a clean environment for future generations.
-
Low Energy ConsumptionSignificantly reduces heating and cooling costs thanks to the low Uw value. Shrinks the carbon footprint.
-
ISO 14001 Environmental ManagementEnvironmental impact is minimized during the production process with a certified environmental management system.
1.16
Uf (W/m²K)
Frame Insulation
Frame Insulation
0.86
Uw (W/m²K)
Window Insulation
Window Insulation
6
Chambered
Profile System
Profile System
32mm
Max. Glazing
Thickness
Thickness
Profiles

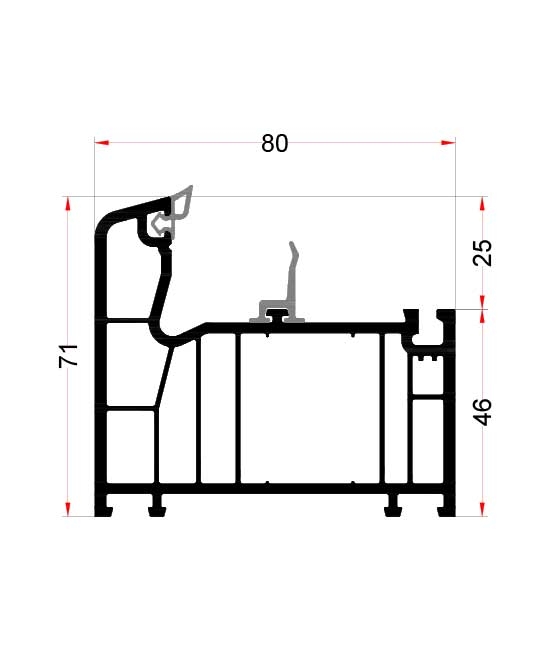

Frame Profile
EN701

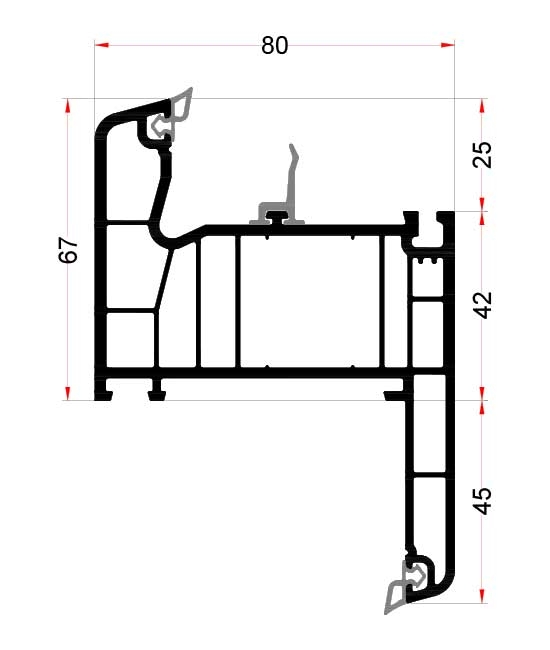

Sill Frame Profile
EN711

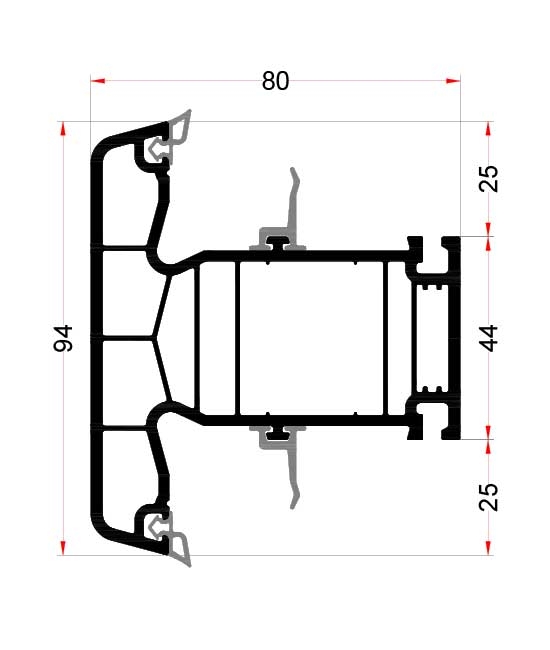

Mullion Profile
EN721

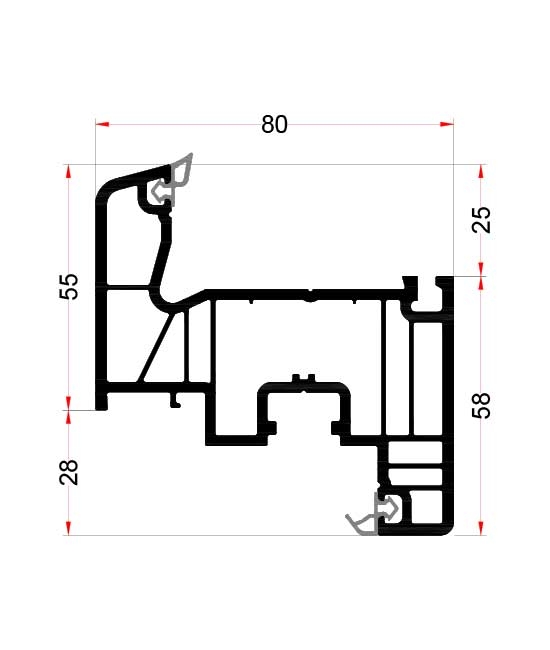

Window Sash Profile
EN731

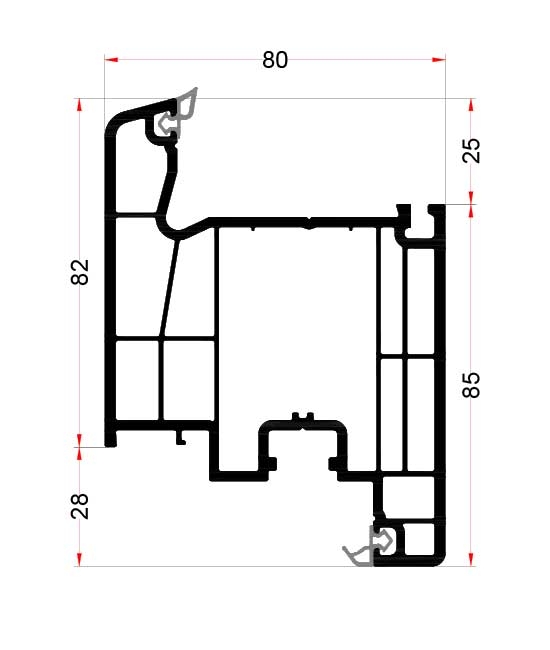

Door Sash Profile
EN741
Application Drawings

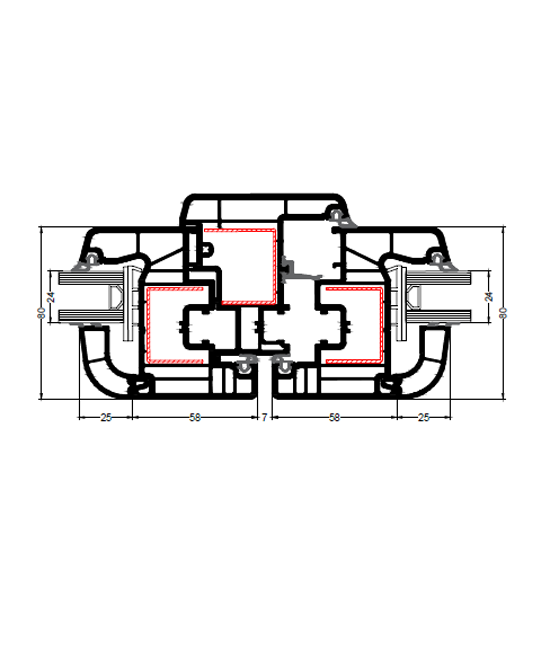

Movable Mullion Application

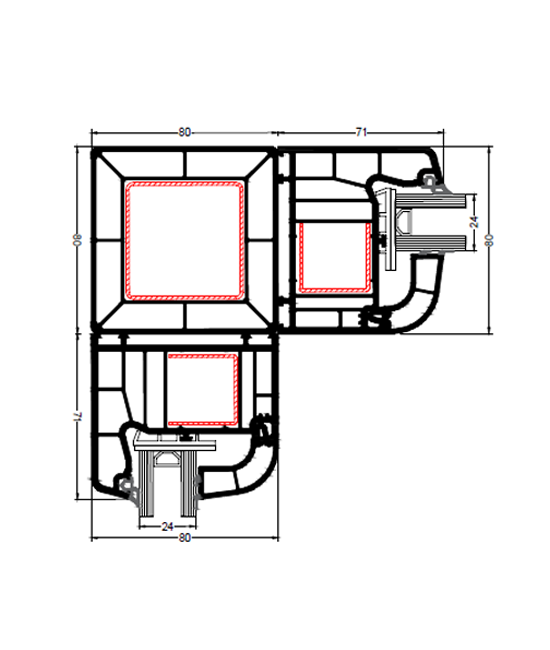

Box Profile Application

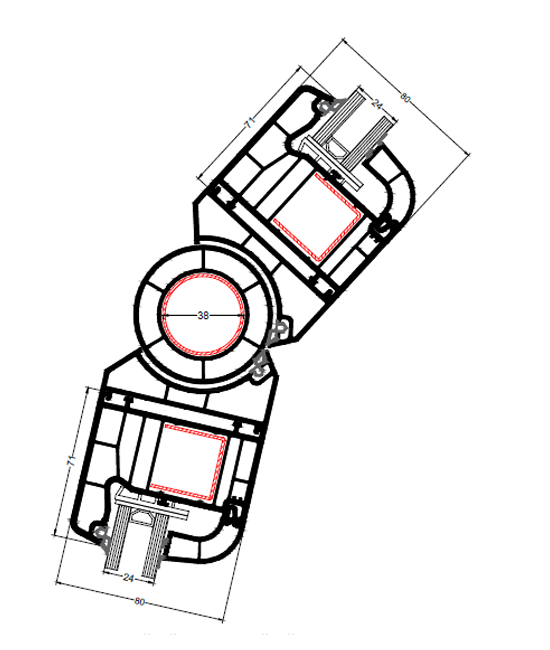

Angled Coupling Application

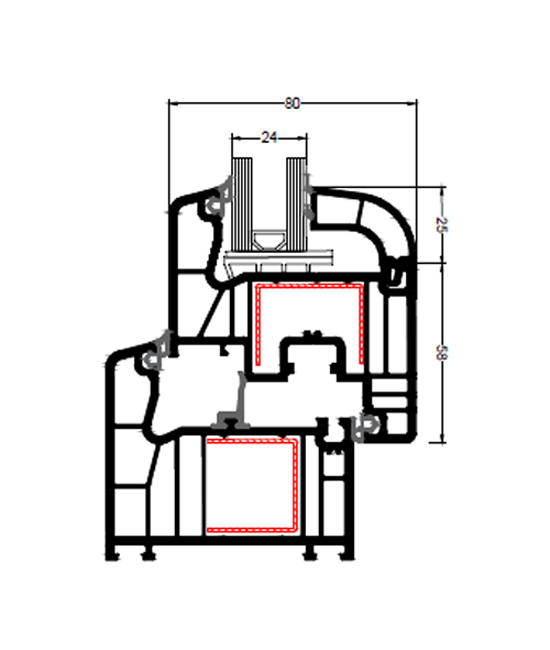

Frame – Window Sash Application

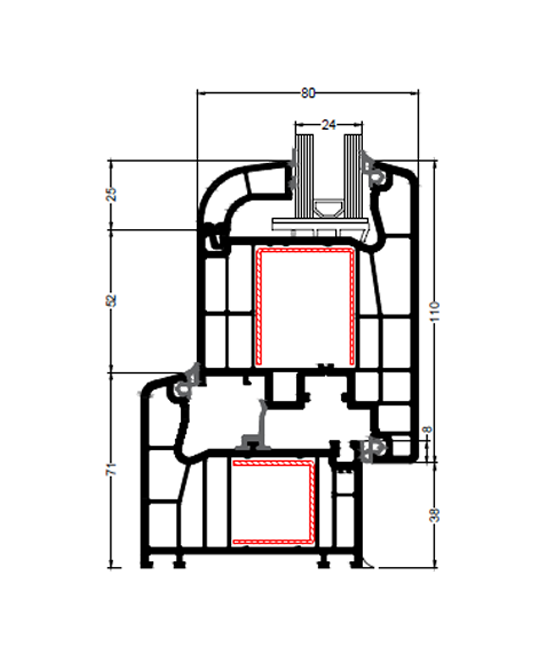

Outward Opening Door Application

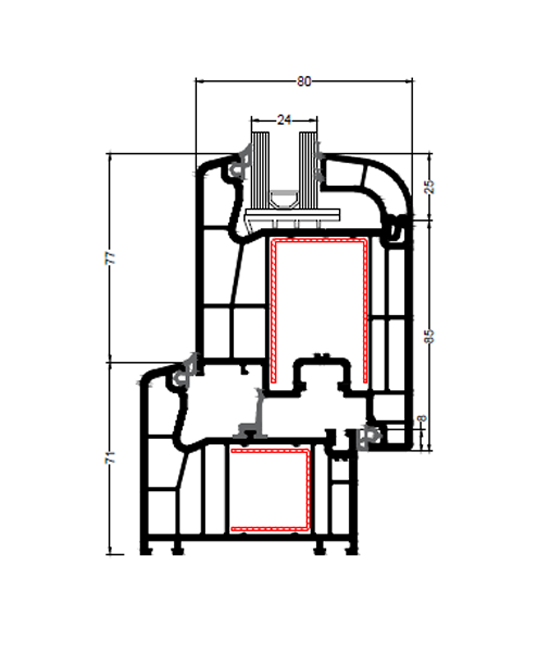

Frame – Door Sash Application
Glazing Bead Applications

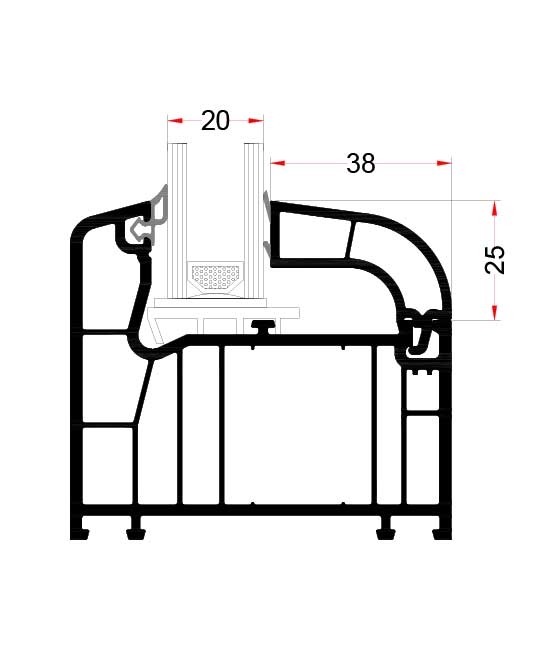

20 mm Double Glazing

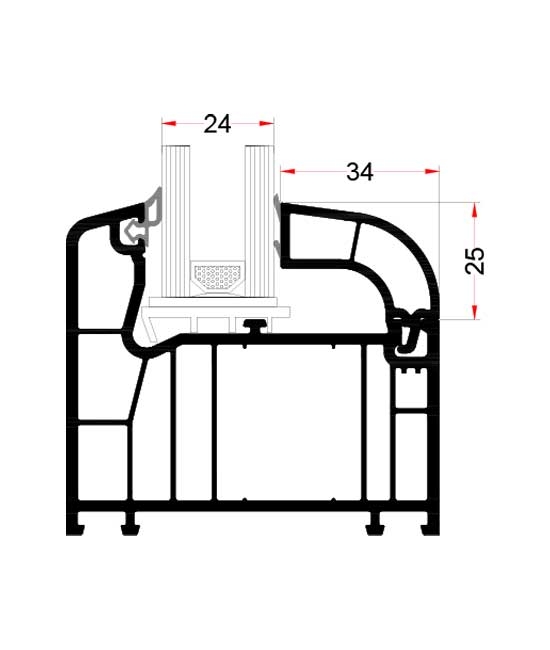

24 mm Double Glazing

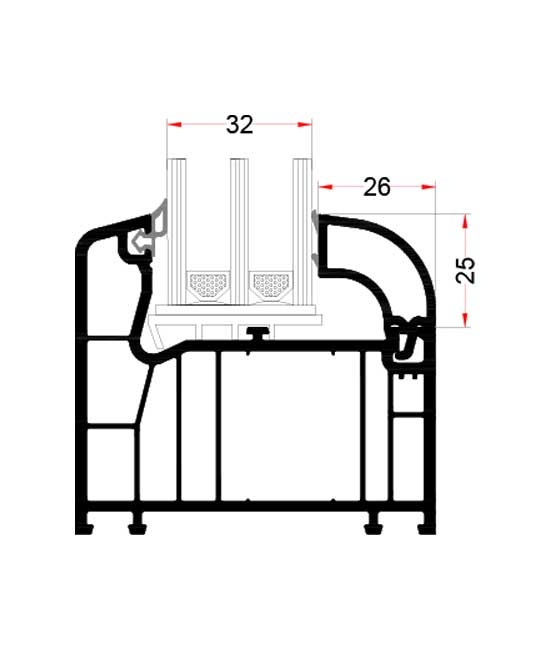

32 mm Glazing Profile
Glazing Beads

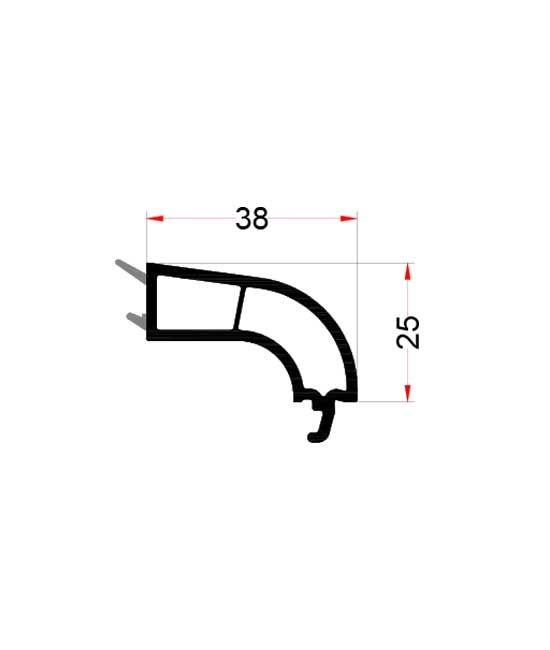

20 mm Double Glazing
EN76

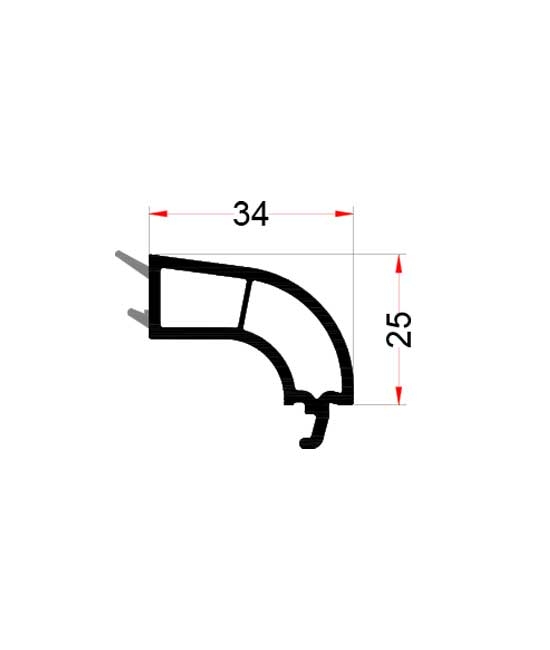

24 mm Double Glazing
EN77

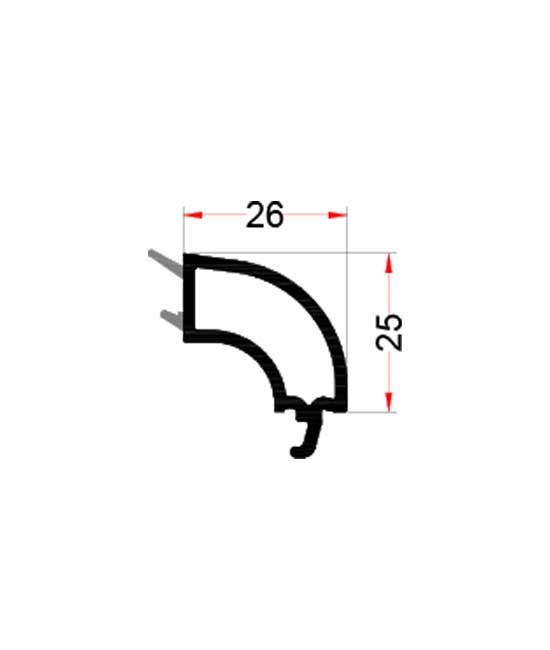

32 mm Double Glazing
EN78
44 mm Triple Glazing
EN116
Auxiliary Profiles

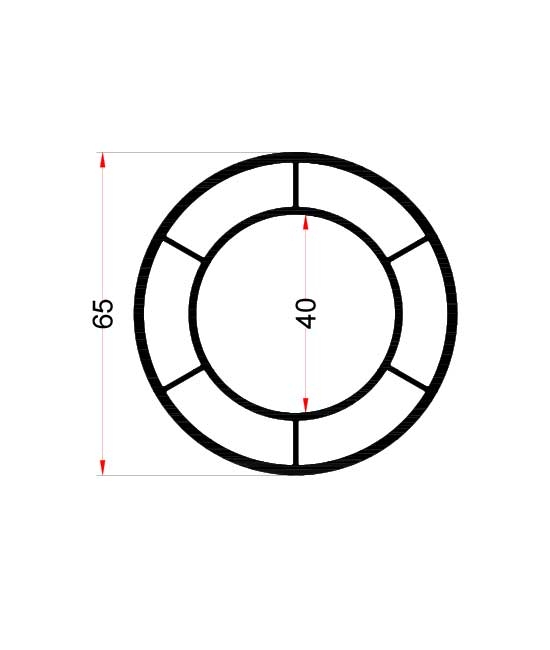

Φ65 Pipe Profile
EN28

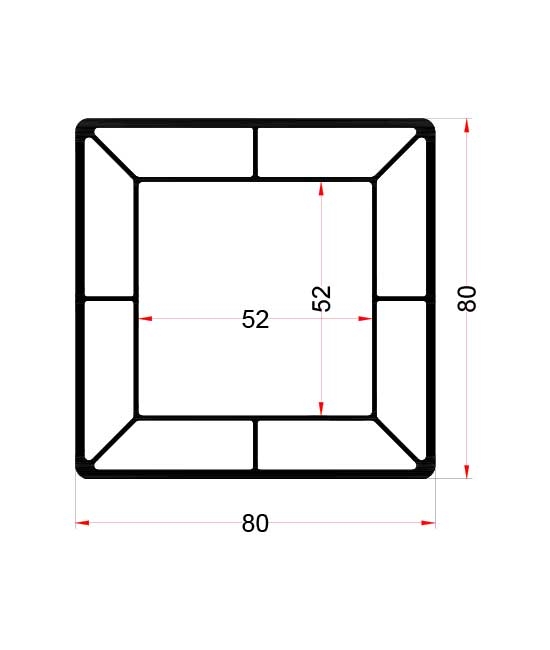

80 × 80 Box Profile
EN27

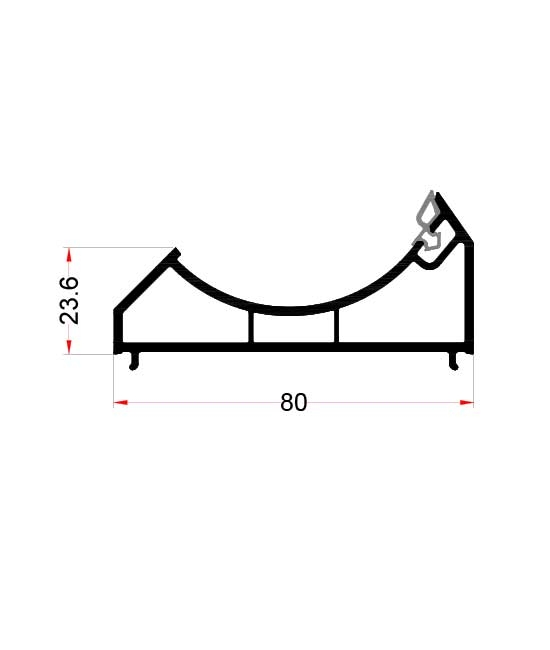

Corner Adapter
EN29

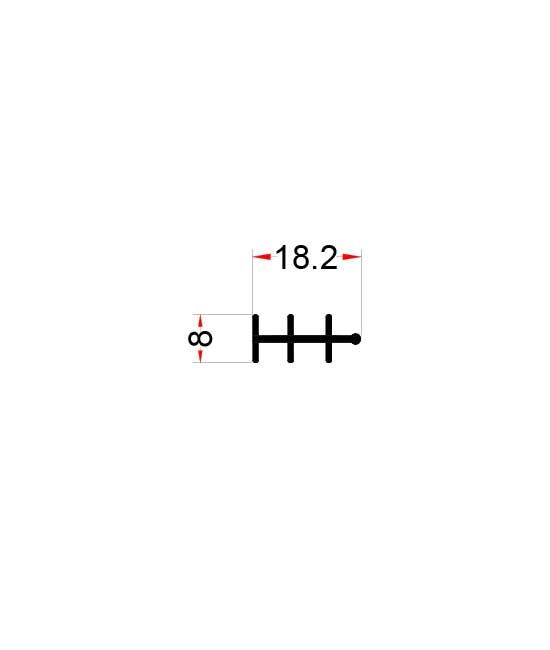

Universal Coupling
EN61

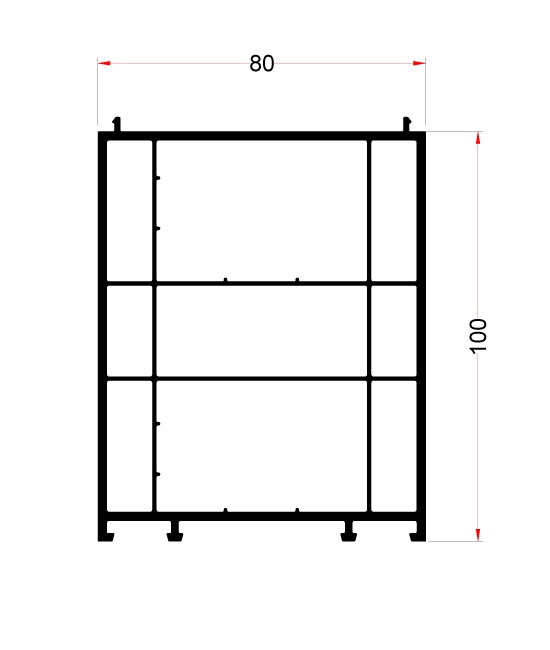

80 × 100 Extension Profile
EN115

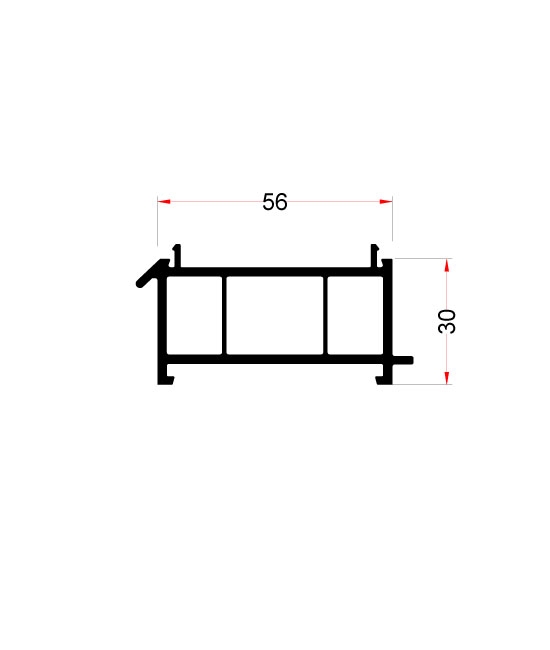

30 × 56 Extension Profile
EN114

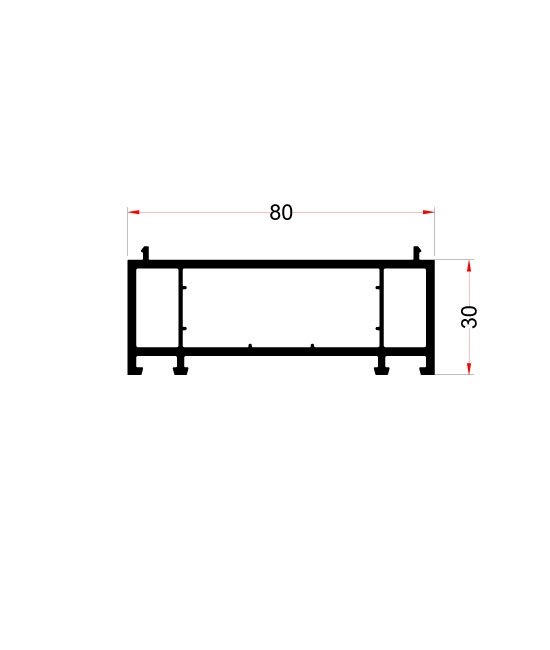

30 × 80 Extension Profile
EN112

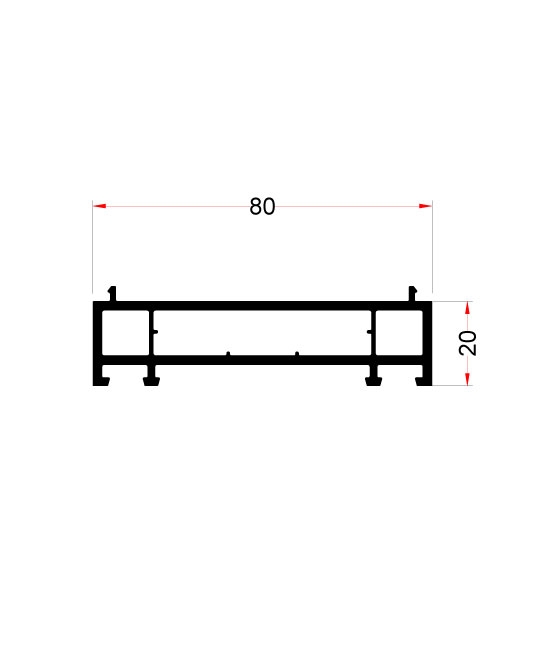

20 × 80 Extension Profile
EN110
